6th October 2014
(NB: This article has already appeared in the October edition of Astro Nerds online magazine but this is a slightly edited version with more photos)
Ever since I was a child, I had a dream that one day I would
have my own observatory. I can remember driving past the Jeremiah Horrocks
Observatory in Preston, Lancashire on a regular basis, and every time I saw it
I wished that we could buy it! When I got my first telescope at 11 years old, I
had a master plan that involved sliding doors in the roof and a full loft
conversion to house my future telescope collection.
Fast forward to 2011. That is when I met my now fiancé,
Mark. He has also had a lifelong passion for all things astronomy and he too
had a dream of one day having his own observatory. We were both captivated by the astronomy
domes that were on display at Astrofest in London, but being a practical
person, Mark was also interested in the observatory sheds which have a roll-off
roof. We had talked about it as a bit of a pipe dream, hoping that one day we
might be able to build something of our own.
In 2013 we moved into our new house in rural
Oxfordshire. We are still completely in
awe of how amazing the skies are from our back garden. We have nothing but
fields behind us and very little light pollution in most directions apart from
the South. When we moved into the house,
we found an old shed in pieces at the bottom of the garden. Mark looked it over
and began to form a plan to convert this discarded shed into an observatory. He
spent a lot of time researching via the internet, reading other people’s blogs
and looking at online instructions. It
didn’t take him long to come up with a workable solution. Plans were drawn up,
sketches made and photos printed out. He then sourced all the bits that we
needed to upcycle the shed, along with all the building supplies we
needed. At this point it hadn’t really
sunk in that we were finally going to have an observatory of our own. Then the
bits began to arrive in the post; first was an alarm system. We were both very
adamant that the shed needed to be secure because we know of a number of people
who have had astronomy equipment stolen from their gardens. Next came a metal
mounting plate, then the wheels for the roof. Slowly all the individual
components began to build up, and so my excitement mounted!
Work began in March 2014. We had a spot at the end of our
garden which was perfect for our observatory shed. One of the most important
parts was the pier. It needed to be very stable so that any of our existing
telescopes could be mounted onto it, and also any new, larger telescopes that
we may buy in the future. He began by
clearing the area. Then he marked out the footprint of the shed, and put the
corner posts in place. He dug trenches around the sides and part-filled them
with concrete. This gave him a solid base on which he put a few rows of bricks.
Each of the 4 walls of the shed would sit on top of the bricks. Once we had the
footprint marked out, we could decide on the location of the pier. Once we’d
agreed that, Mark dug a hole where the pier would be positioned. He drove a
metal stake several feet into the ground, and then placed a long piece of drain
pipe over the top of it. The pipe was then concreted into place. Concrete was also poured down into the bottom
of the drain pipe to secure the pier stake in place. Once we’d checked the
height we needed the mounting plate to be, we cut off the top of the pipe, then
filled it to the top with more concrete.
While it was still wet, 4 large bolts were set into the concrete, which
would later allow the angle of the mounting plate to be adjusted to get
everything at the correct level. Drilling holes in the mounting plate took ages
and Mark worked his way through several drill bits before that job was
complete!
Once the concrete had set, Mark set about building a frame
work for the suspended wooden floor. It was important that the floor didn’t
touch the pier, so that walking around inside the shed wouldn’t cause any
vibration to the telescopes, so he left a gap of around 2cm all around the pier
pipe. Once the floor was down, the sides of the shed were put into place. Next
came the uprights which would hold the runners for the roll-off roof. Having
measured very carefully, the upright posts were concreted into place, and the
cross beams fitted along the ends. He then took the long pieces of wood which
would act as runners, and using a router he cut channels into the wood which
were large enough for the wheels to fit into. He drilled small drainage holes
in the channels to allow rainwater to escape. Then he began construction of the
roof.
It was really important that the roof be lightweight and easy
to roll back, so Mark used a design which he had seen somebody else use online.
It consisted of a wooden framework with a pitched roof made from corrugated
plastic sheets which overhang the edges to keep the rain out. It didn’t take him long to make the roof once
he got going. The wheels were fitted
onto each corner of the roof, and it was put in place. It worked perfectly the
first time! Retaining clips were fitted to the inside so that the roof could be
locked into place from the inside when it was closed. Once the roof was done,
he finished off the gable ends with wooden panels and the main construction was
completed. The whole thing was given a few coats of wood preserver.

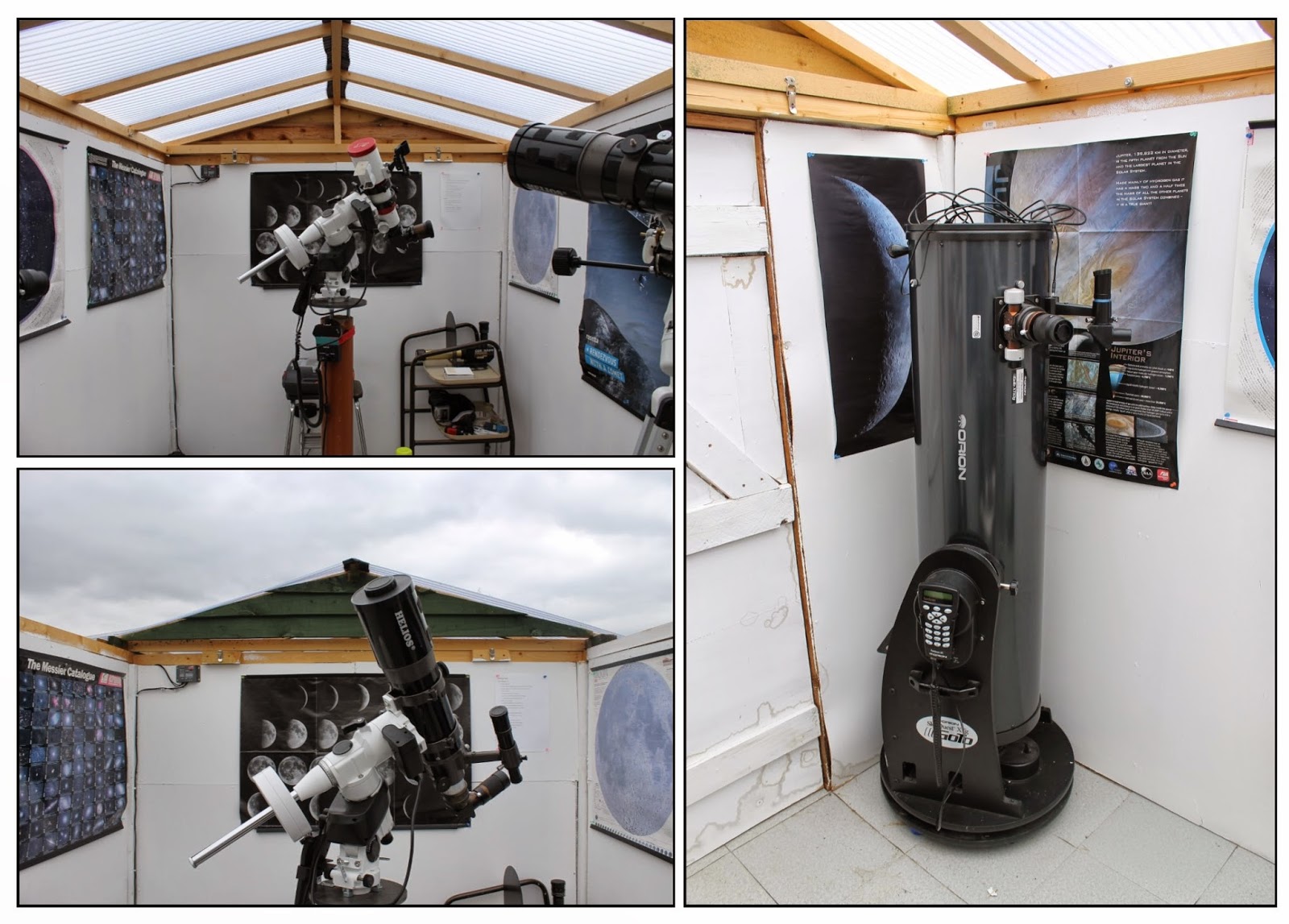

Inside, Mark lined the walls with hardboard panels and I
painted them. I had barely given the walls time to dry before I started putting
our favourite posters up on the walls! He fitted some self-adhesive floor tiles
to finish off the floor. We decided that now was a good time to invest in a new
telescope mount to upgrade our existing mounts. A friend had kindly let us
borrow his EQ5 Pro to see how it suited us. We both loved it, so we ordered one
of our own. Mark spent a long time
getting the mounting plate level and polar aligning the mount. He also spent
time drift aligning it to make sure everything was perfect. So then we were ready to put our most often
use telescopes into the observatory shed. Because of the design of Mark’s 10”
Dobsonian telescope, it would not be practical to use it inside the observatory
shed because the walls were too high. It was too heavy to carry in and out, so
he put casters onto its base, and built a concrete ramp up to the door of the
shed. This would allow us to just roll the telescope in and out of the shed
each time we wanted to use it. The other 3 telescopes we can swap and change
onto the pier depending on which one we want to use.
Power was another important consideration. Running mains
power to the shed wasn’t an option at this time. However, if we were planning
to do any long imaging sessions, or if we wanted to use more than telescope at
once, we would need something that could last longer than our little astronomy
power-pack. Time for some more upcycling! I had a spare set of mobility scooter
batteries, so Mark wired them up in parallel and bought a solar panel which
would trickle charge them during the day. We also have a proper battery charger
for them to top them up if they’ve had heavy use. So far this system is working
really well, and the batteries have a much higher capacity than the power-pack.
Having this observatory has had a huge impact on my
life. Being disabled means that I can’t
carry telescopes in and out of the house, so my observing time was severely
restricted before. Now, anytime there is a clear night, I can just open the
roof of the observatory, chose which telescope I want to use, and off I go
without any lifting or carrying. It doesn’t matter what time of night it is;
even if Mark is asleep I can go out and get things set up by myself. There
isn’t enough room in there for my wheelchair, but I have a folding walking
stick seat which is absolutely perfect for perching on while I’m observing or
imaging. The new mount is a dream to work with. Prior to having this, I had a
very basic mount on my 102mm refractor which didn’t track. So from an imaging
point of view I was restricted to 1 second exposures. The new mount has opened
up so many possibilities. People are always saying that the mount is the most
important piece of astronomy equipment you’ll buy, and now I can see why!
The first thing I did was to photograph the Sun and the Moon. Having the mount tracking the object at the
correct speed makes it so much easier to get the object in focus. Before, the
object would have moved out of my field of view before I’d even got the focus
right, let alone taken the photo. It improved the quality of my images straight
away. Then as the nights began to get darker again, I started to try imaging
some more deep sky objects with my Helios 102mm refractor. This is a budget
telescope, but putting it onto that mount has transformed it into something
that you can actually get some decent images from. I like this telescope because when my DSLR is
mounted at prime focus, you get a really wide field of view. I am really looking forward to giving the
telescope and mount a really good workout now that the nights are getting
darker again. Top of my list of targets are M45 - The Pleiades, M42 - The Orion Nebula, and Barnard 33 - The Horsehead Nebula. M45 is one of my
favourite binocular objects, and last year I spent hours trying to stack
hundreds of 1 second shots and trying to bring out some nebulosity. It
was a real uphill struggle and I didn't get very far with it! Similarly I had a struggle trying to stack 1 second exposures of M42 and while I had a bit more luck, it was still a real uphill battle. This past weekend I spent some time imaging M45 and even though the gibbous Moon was bleaching the sky a lot, I actually managed to pick up some nebulosity for the first time ever. I also did a few very quick shots of M42 The Orion Nebula. The amount of detail I was picking up in just 90 seconds of exposure was unbelievable compared to my efforts last winter. Now I just need to drastically improve my processing skills so I can do more justice to these objects!
In addition to the new mount, Mark recently bought a CMOS
imaging camera. We had both been looking at these for some time, but decided on
the ASI120MM. Now that we have a mount that tracks so well, it was worth
investing in this camera. So far I’ve only used it on the Sun and Moon, but I
am already in love with it, and had a lot of fun producing my first Moon
mosaic. We have had a filter wheel for a
couple of years but still haven’t used it. I’m so looking forward to doing some
narrowband imaging of M42. Perhaps this year I will also
manage to pull out the elusive Horsehead Nebula! Now my biggest problem is that I keep
filling my hard drive with astronomy imaging data and I’m certainly giving my
processing skills a serious work out!
If you are thinking about building an observatory of your own,
then don’t think anymore; just do it. I can’t claim any of the credit for the
building of ours; it was all Mark’s hard work doing the planning and execution.
But I can’t put into words how it makes me feel when I’m standing in there, the
sky above me, wind in my hair, while my camera clicks away imaging my next
target. After all those years of
dreaming, we actually have our own observatory shed, and I will never be able
to thank Mark enough for making our dream come true.
If you want to find out more information
about building your own observatory shed, here are some links that you may find
useful.
